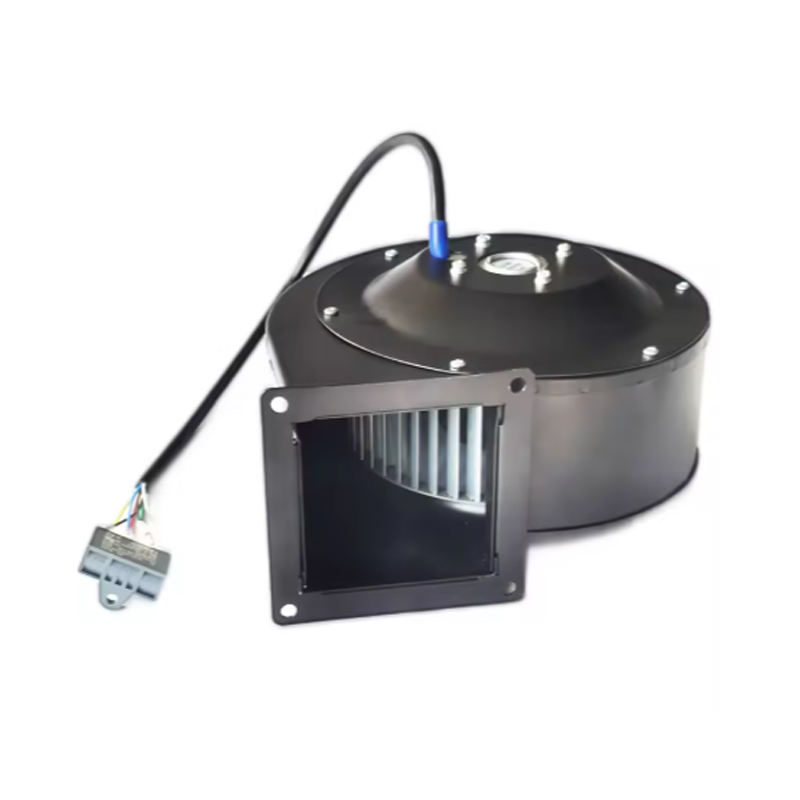

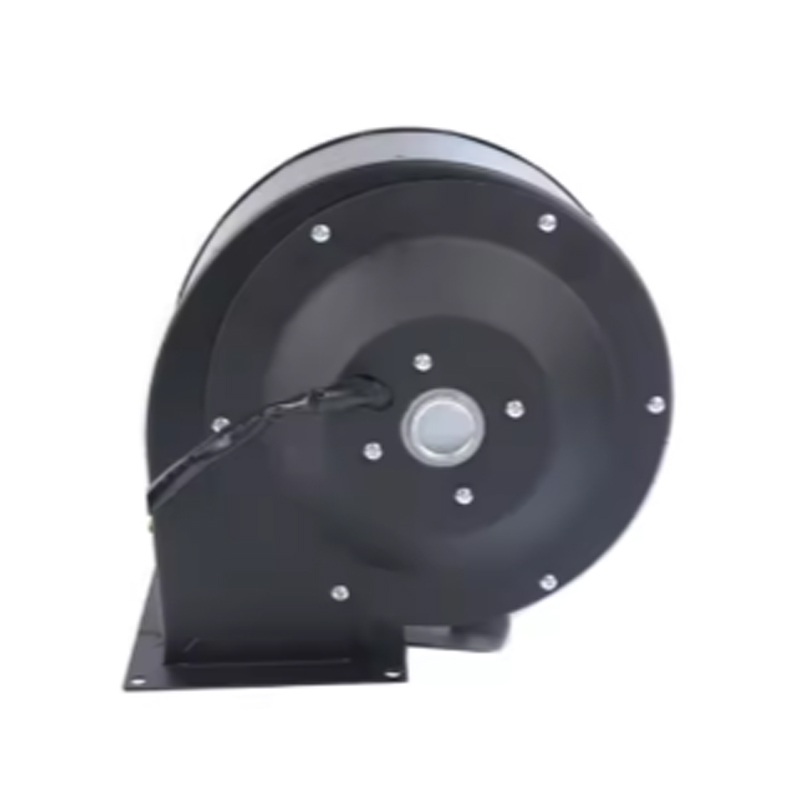

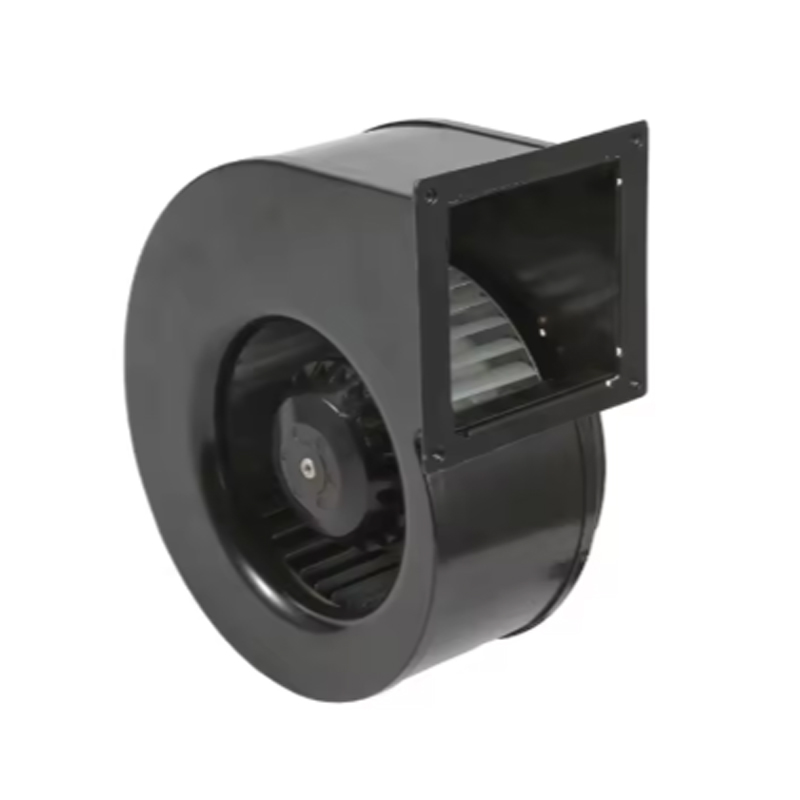

230V ac external rotor motor single inlet centrifugal fans

1. Featuring a classic centrifugal fan design with clean, sleek lines, the fan's painted finish adds a refined look.
2. Equipped with an external rotor AC motor, it operates on a 230VAC, 50Hz power supply and offers 45/39/37 watts of power, providing ample power.
3. It also features three speed adjustments, allowing for flexible adjustment based on ventilation needs. This precisely matches various scenarios, achieving efficient and energy-efficient ventilation.
4. With an air volume of up to 150 cubic feet per minute, it rapidly circulates and replaces air. It maintains a stable static pressure output at varying air volume levels, ensuring smooth air delivery and meeting the needs of various scenarios, such as duct ventilation.

Contact Us WhatsApp

Key attributes

Parameter Detail Parameter Detail
mounting Duct Fan Voltage 220 V
Blade Material Galvanized Plate customized support OEM, ODM
warranty 3 Years After-sales Service Provided Online support
model number YDK 160-60 place of origin Zhejiang, China
brand name HOYOFAN material of the impeller blade stainless steel
Voltage 220V Certification CE
Power 45W Air volume 150CFM
Driving method Direct drive Noise 50-73dB(A)
Pressure 100Pa Fan type Centrifugal fan
Application Air Ventilation
