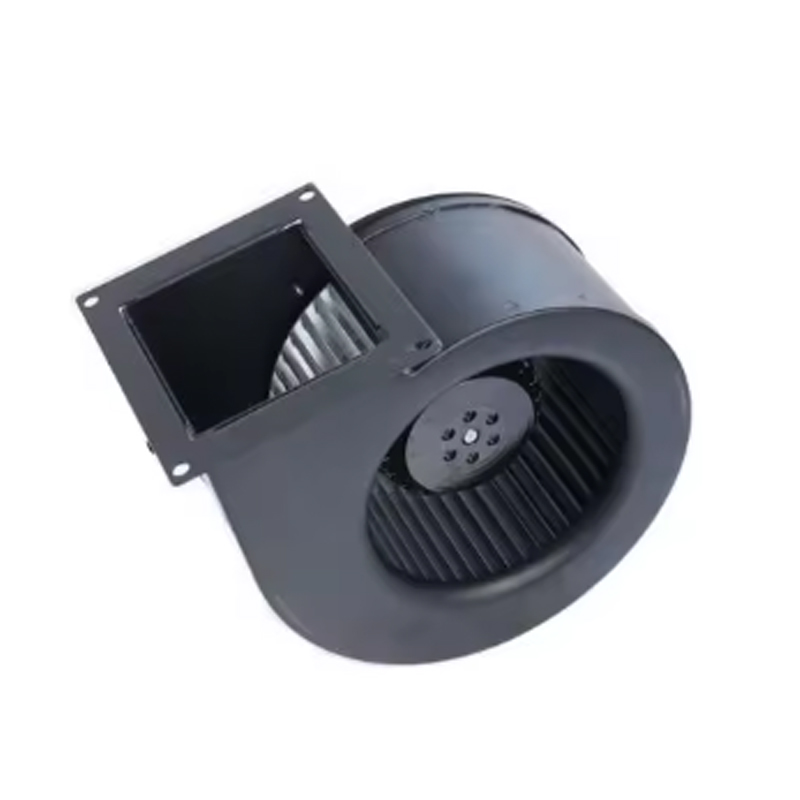

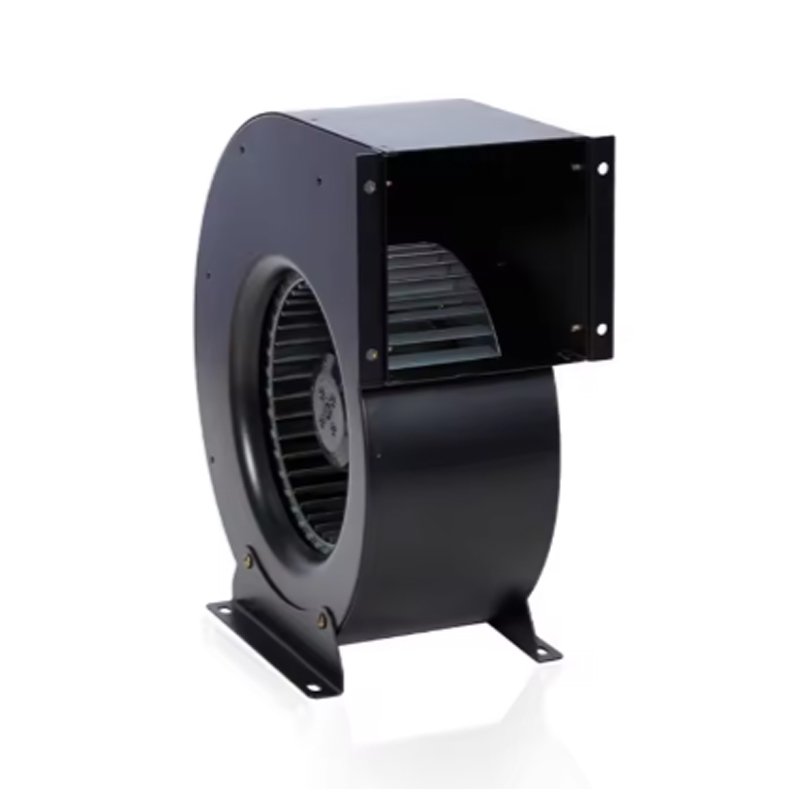

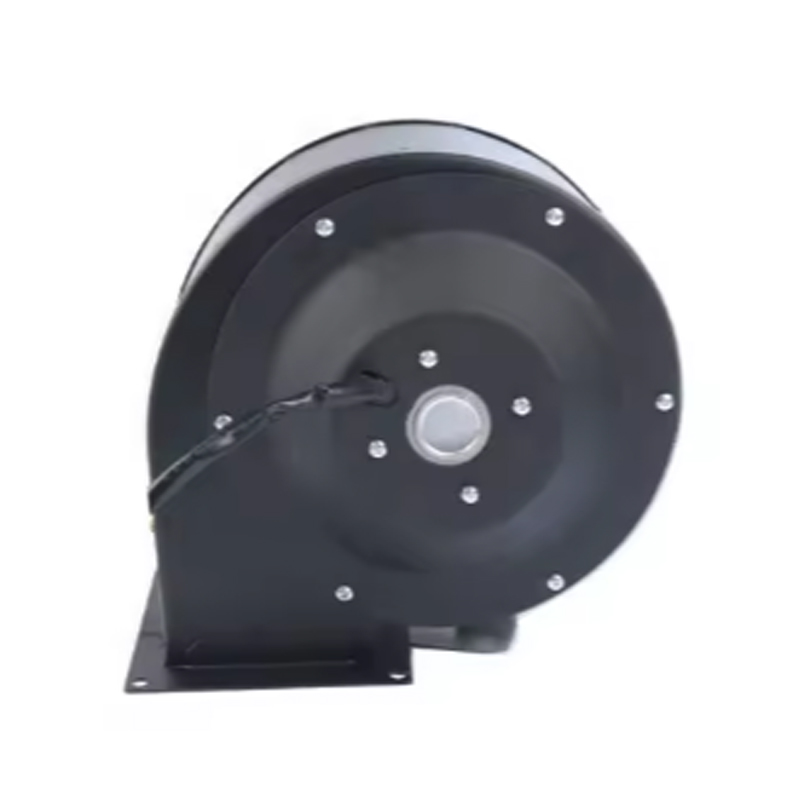

1. Featuring a powder-coated metal casing and a galvanized steel impeller, this single-inlet centrifugal fan with a compact volute design ensures smoother airflow and exhaust, improving ventilation efficiency.
2. Highly efficient, it can move up to 600 cubic meters per hour, quickly and effectively replacing and circulating air, creating a positive air environment for industrial spaces.
3. Maintenance-free ball bearings reduce ongoing maintenance costs and effort, while ensuring fan stability during continuous operation (S1 mode), providing continuous power for industrial ventilation.
4. Driven by an AC motor with a rated voltage of 220 volts and a frequency of 50 Hz, it meets common industrial power standards. With IP44 protection and insulation class F, it is adaptable to a variety of industrial environments and offers flexible installation locations, allowing for installation wherever required, without worrying about site restrictions.
| Parameter | Detail | Parameter | Detail |
| Mounting | Duct Fan | Voltage | 110V |
| Blade Material | Stainless Steel | Electric Current Type | AC |
| Customized support | OEM, ODM | Warranty | 3 Year |
| After-sales Service Provided | Online support | Model number | YDK 160-80 |
| place of origin | Zhejiang, China | Brand name | HOYOFAN |
| Product name | Industrial Centrifugal Fans | Application | Industrial Ventilation |
| Size | 6" | Feature | High Efficiency |
| Usage | High Pressure Blowing | Material | Stainless Steel |
| Fan Type | Centrifugal Fan | Stainless Steel | AC Motor |
| Certification | CE | Bearing Type | Deep Groove Ball |
| Type | Centrifugal Fan | Applicable Industries | Hotels, Garment Shops, Building Material Shops,... |
| Core Components | Motor, Bearing, Impeller, Flange, Capacitor, Stan... | ||
Products provided by famous enterprises are deeply trusted by users.
The most effective way to reduce centrifugal fan noise is to address it at the source: optimize the impeller-volute clearance, install inlet and outlet silencers, mount the fan on vibration isolators, and ensure the fan operates at its peak efficiency point. Combining these measures can realistically cut noise lev...
READ MOREEC centrifugal fans use electronically commutated brushless DC motors with efficiency reaching 80%-90%, saving over 30% energy compared to traditional AC fans while operating at noise levels as low as 55dB(A). They are the ideal choice for HVAC systems, cleanrooms, and data center cooling. Core Structural Components...
READ MOREDirect Answer A single inlet centrifugal fan draws air through one axial opening, accelerates it with a rotating impeller, and discharges it radially at higher pressure. This single-suction geometry makes the unit more compact and easier to integrate than double-inlet designs, while still delivering the high static p...
READ MORE
