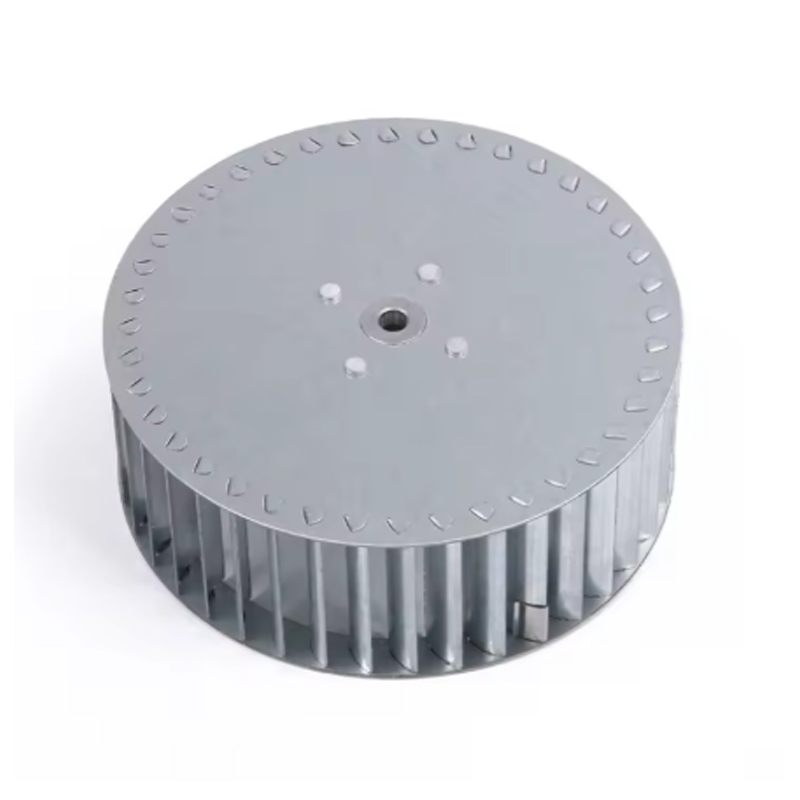

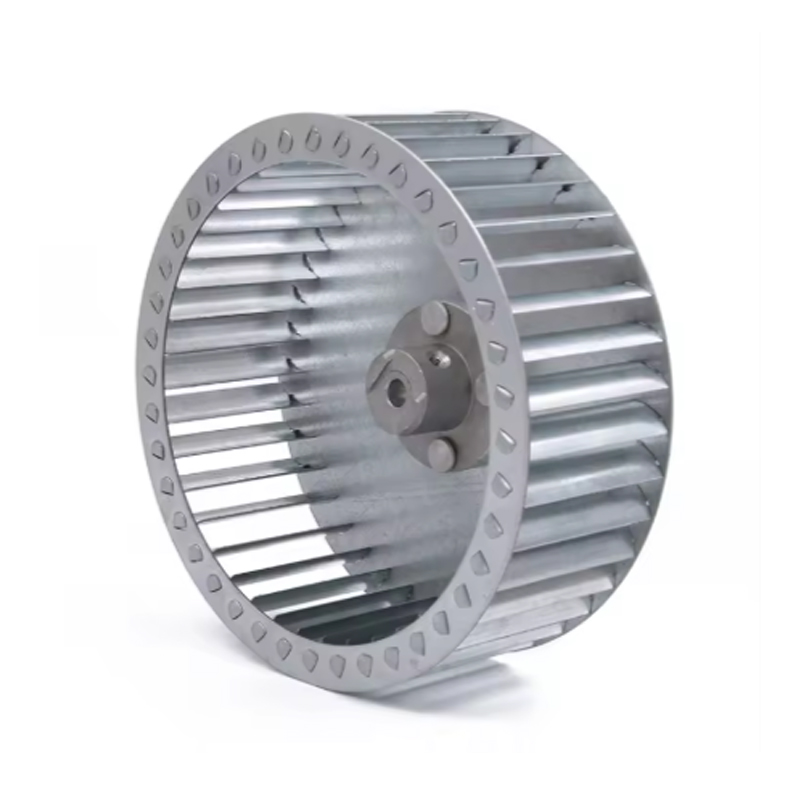

1. The impeller features a regular, volute-shaped vortex, constructed from materials such as galvanized sheet metal. The blades are scientifically designed, efficiently drawing and pushing air as they rotate.
2. The fan can achieve a static pressure of up to 200 Pa and an air volume of 500 cubic meters per hour. In industrial environments, it can easily overcome resistance in ventilation ducts and efficiently deliver air to every corner, meeting the needs of large spaces or long-distance ventilation.
3. It supports three speed modes, flexibly adjusting the fan speed based on actual ventilation or air conditioning needs, achieving precise control of air volume, ensuring environmental comfort while effectively saving energy.

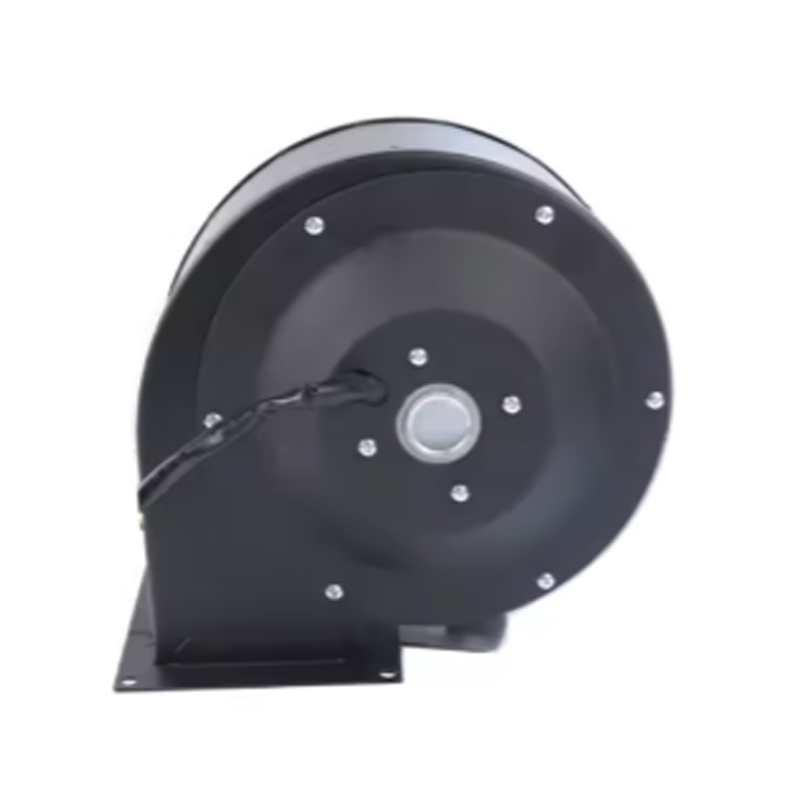

4. This high-static-pressure, volute-shaped, single-inlet industrial blower is widely used in air ventilation applications, including hotels, building material stores, manufacturing plants, food and beverage plants, farms, restaurants, and homes.
| Parameter | Detail | Parameter | Detail |
| mounting | Duct Fan | Voltage | 220 V |
| Blade Material | Galvanized Plate | Electric Current Type | AC |
| customized support | OEM, ODM | warranty | 3 Years |
| After-sales Service Provided | Online support | model number | YDK 160-60 |
| place of origin | Zhejiang, China | brand name | HOYOFAN |
| material of impeller blade | stainless steel | Voltage | 220V 110V |
| Certification | CE UL | Power | 45/39/37W |
| Air volume | 500 m³h | Driving method | Direct driven |
| Noise | 50-73dB(A) | Pressure | 200Pa |
| Fan type | Radial Centrifugal fan | Application | Air Ventilation |
| Type | Centrifugal Fan | Applicable Industries | hotels, Building Material Shops, Manufacturing Plant,... |
| Core Components | Motor, Bearing, Impeller, Flange, Capacitor | ||
Products provided by famous enterprises are deeply trusted by users.
