Motor connection through Pulley and belts
Available Size:7-7L,9-7L,9-9L,10-8L,10-10L; 12-9L,12-12L; 15-15L; 18-18L
Housing Material：Galvanized steel sheet
Bearing: High carbon steel ball bearings,HRB
Shaft: Carbon Steel bar (AISI-1045) with unti-rust paint
Impeller: Forward curved galvanized sheet
Shaft diameter: 20-25mm
Fixed bracket: 6pcs Iron bracket anti-oxidation treatment
Main Datas：

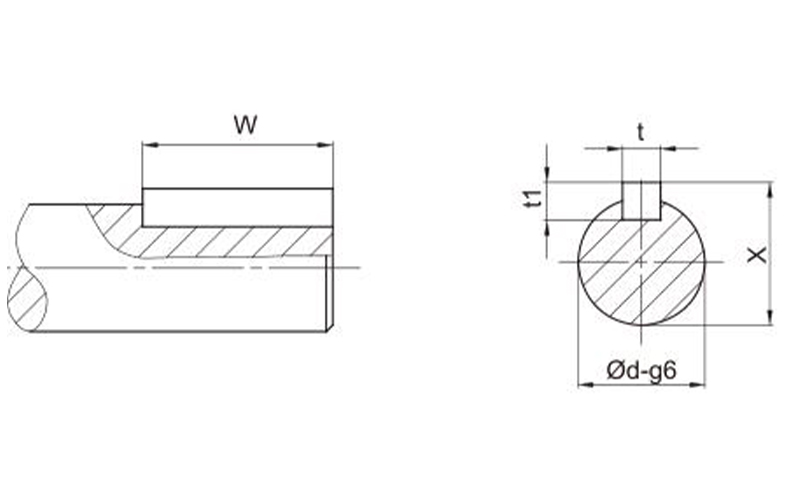

| Model/Size | A | B | C | D | E | I | J | K | L | M | N | X | t | t1 | W | φd | H1 | H2 | H3 | X1 | X2 | X3 |
| 7-7L | 312 | 328 | 228 | 192 | 180 | 370 | 259 | 279 | 299 | 32 | 152 | 22.5 | 6 | 6 | 30 | 20 | 224 | 164 | 164 | 90 | 90 | 90 |
| 9-9L | 380 | 387 | 262 | 215 | 300 | 450 | 298 | 324 | 348 | 51 | 185 | 22.5 | 6 | 6 | 30 | 20 | 253 | 199 | 177 | 119 | 124 | 123 |
| 10-10L | 425 | 444 | 289 | 249 | 340 | 490 | 331 | 357 | 381 | 56 | 203 | 28 | 8 | 7 | 50 | 25 | 287 | 227 | 198 | 136 | 132 | 135 |
| 12-12L | 491.5 | 521 | 341 | 294 | 408 | 565 | 395 | 421 | 445 | 61 | 230 | 28 | 8 | 7 | 60 | 25 | 332 | 266 | 232 | 161 | 153 | 161 |
| 15-15L | 569 | 609 | 404 | 342 | 495 | 650 | 471 | 497 | 521 | 66 | 264 | 28 | 8 | 7 | 60 | 25 | 380 | 309 | 272 | 197 | 211 | 201 |

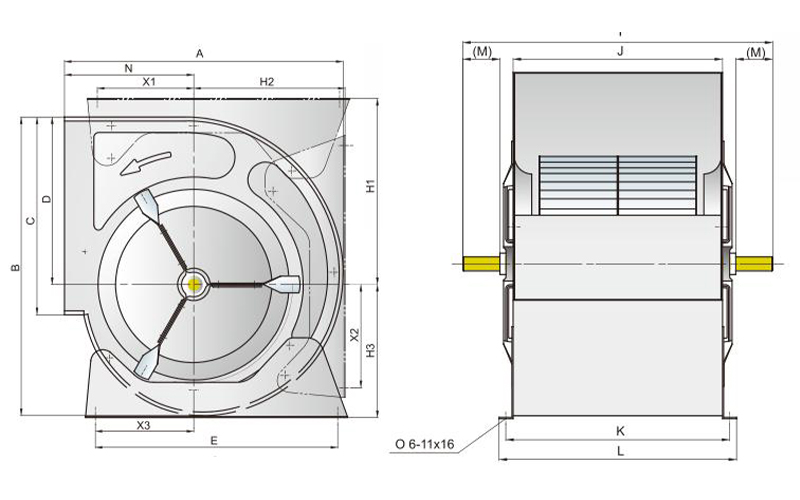

Product size：
