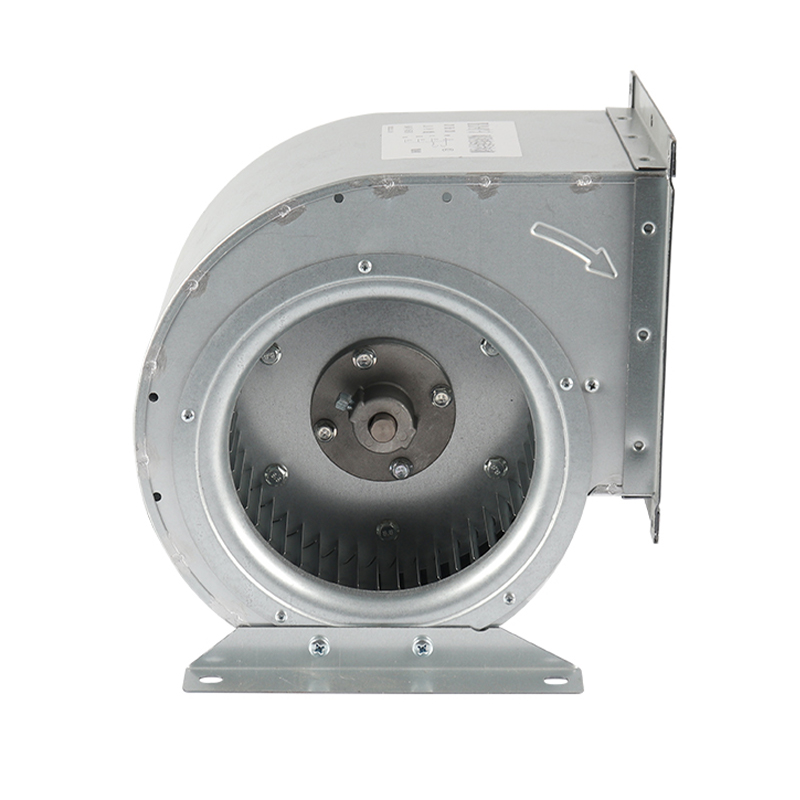

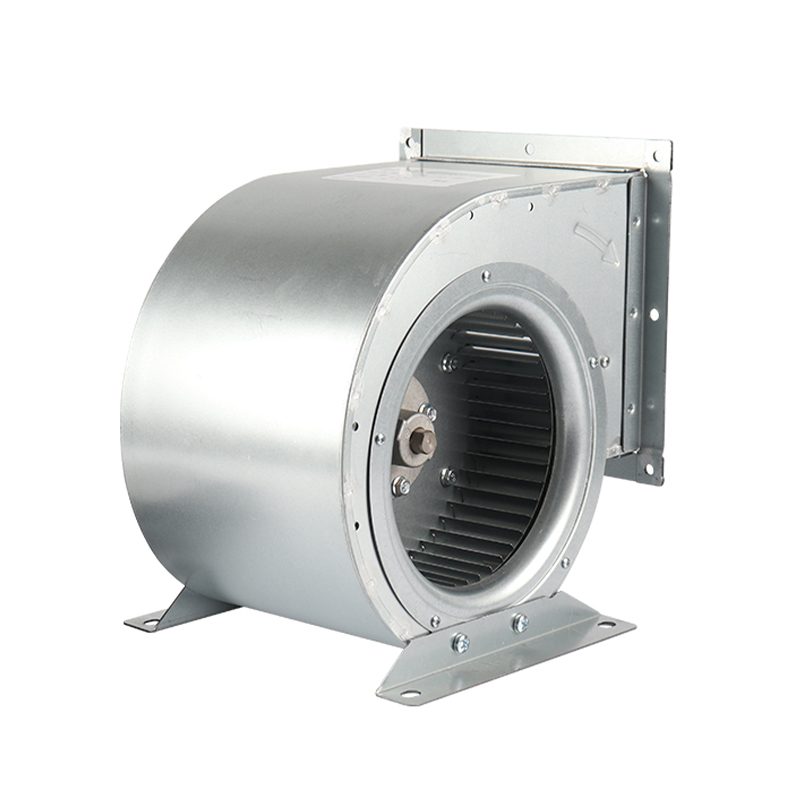

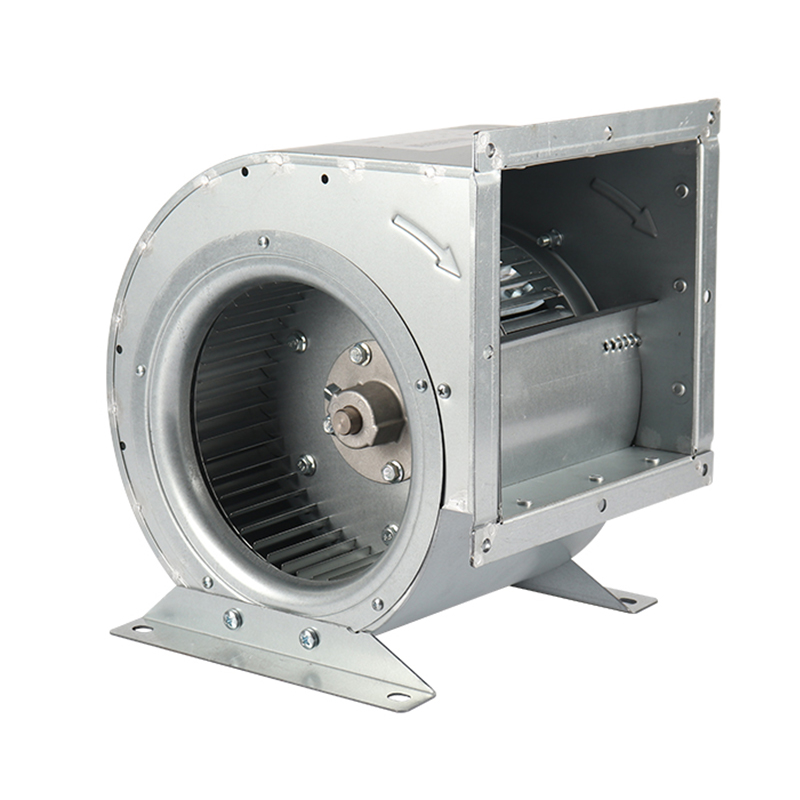

1.The housing is constructed of galvanized steel, offering excellent corrosion and impact resistance. It withstands moisture, dust, and other erosions found in industrial environments, extending the life of the equipment.

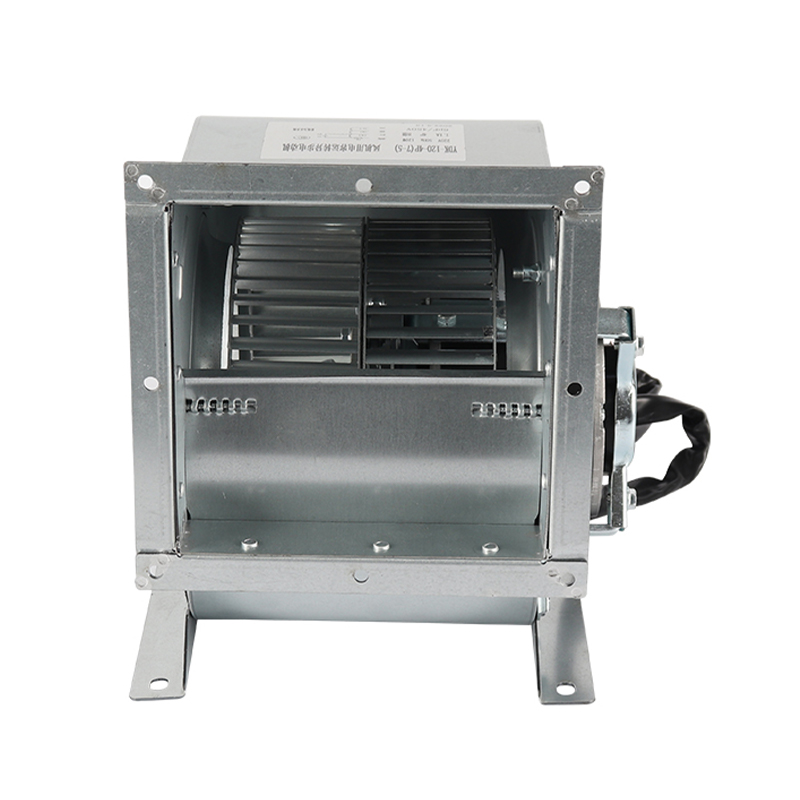

2.The standard forward-curved galvanized impeller offers a balanced combination of strength and air pressure performance. For lightweighting or specialized applications, a plastic impeller is available, providing flexible adaptation to varying requirements.
3.Centrifugal force drives the airflow, creating a strong pressure differential that easily overcomes resistance from pipe elbows and filters.
4. Concentrated Air Volume，airflow is directed tangentially along the volute, minimizing energy loss and enabling efficient long-distance air delivery.
Main Datas：
| Condition No. | Static Pressure of Air Chamber (Pa) | Air Flow (m³/h) | Total Pressure of Air Chamber (Pa) | Current (A) | Speed (r/min) | Power (W) |
| 1 | 267.15 | 91.67 | 283.47 | 0.82 | 1456 | 160 |
| 2 | 245.91 | 223.93 | 262.23 | 0.83 | 1451 | 165 |
| 3 | 206.18 | 642.36 | 222.49 | 0.93 | 1405 | 197 |
| 4 | 169.92 | 892.72 | 186.22 | 1.05 | 1355 | 224 |
| 5 | 143.47 | 1004.47 | 159.76 | 1.12 | 1323 | 243 |
| 6 | 114.72 | 1050.92 | 131.01 | 1.15 | 1305 | 251 |
| 7 | 83.31 | 1117.54 | 99.59 | 1.19 | 1288 | 257 |
| 8 | 57.13 | 1146.87 | 73.41 | 1.21 | 1278 | 262 |
| 9 | 40.01 | 1169.53 | 56.28 | 1.23 | 1264 | 267 |
| 10 | 8.97 | 1214.38 | 25.24 | 1.26 | 1246 | 273 |
Product size：

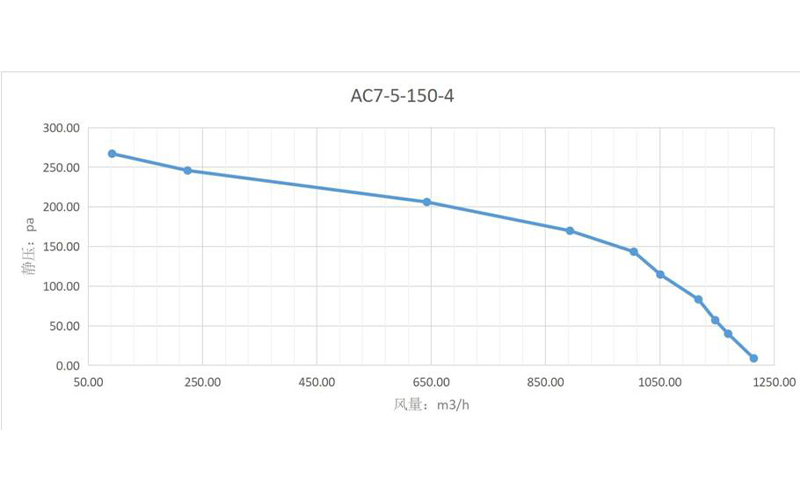

Curve：
