Main Datas：
| NO. | Air volume (m³/h) | Total Pressure (Pa) | Static Pressure (Pa) | Power (kW) |
| 1 | 5043 | 476 | 444 | 1.155 |
| 2 | 6659 | 532 | 476 | 1.635 |
| 3 | 7850 | 543 | 465 | 1.983 |
| 4 | 8814 | 547 | 449 | 2.312 |
| 5 | 9283 | 546 | 437 | 2.455 |
| 6 | 9981 | 544 | 417 | 2.709 |
| 7 | 10461 | 544 | 405 | 2.867 |
| 8 | 10998 | 542 | 388 | 3.057 |
| 9 | 11568 | 540 | 370 | 3.294 |
| 10 | 12162 | 534 | 345 | 3.544 |

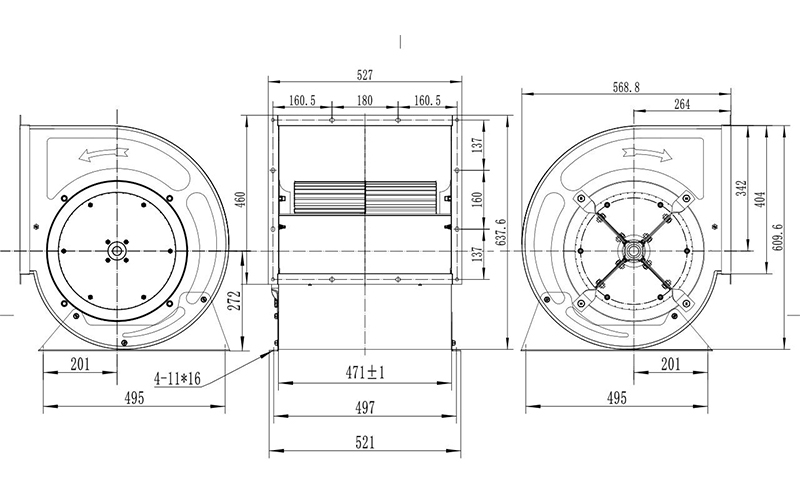

Product size：
Products provided by famous enterprises are deeply trusted by users.
