1. It features a standalone design with a simple and elegant appearance, embodying the rugged feel of industrial equipment.
2. It is equipped with a high-efficiency rotor motor enclosed in an IP54 aluminum housing, effectively preventing dust and moisture intrusion and extending its service life. Its insulation rating reaches F, further enhancing the motor's safety and heat resistance, making it suitable for high-temperature industrial environments.
3. It is suitable for applications such as exhaust fan cabinets and air exchange units, and also plays an important role in industries such as HVAC systems.
4. An optional vertical bracket provides more installation options, allowing for flexible adjustment of the device's mounting position based on site space and layout, making it suitable for a variety of complex industrial sites.

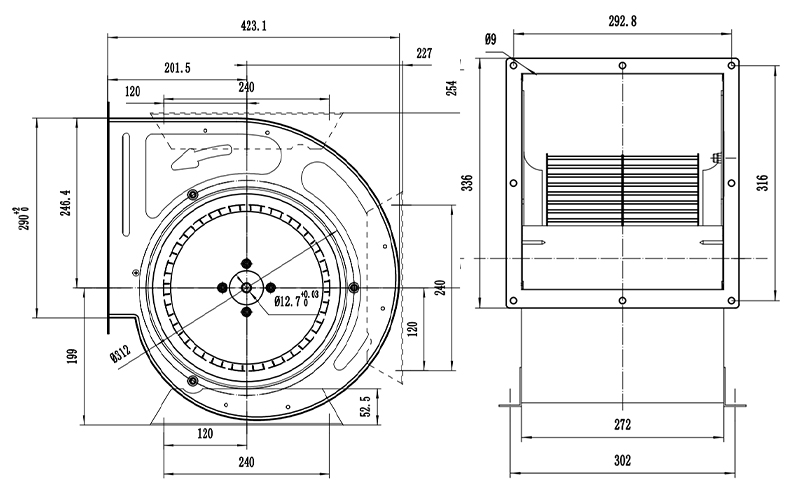

Product size：

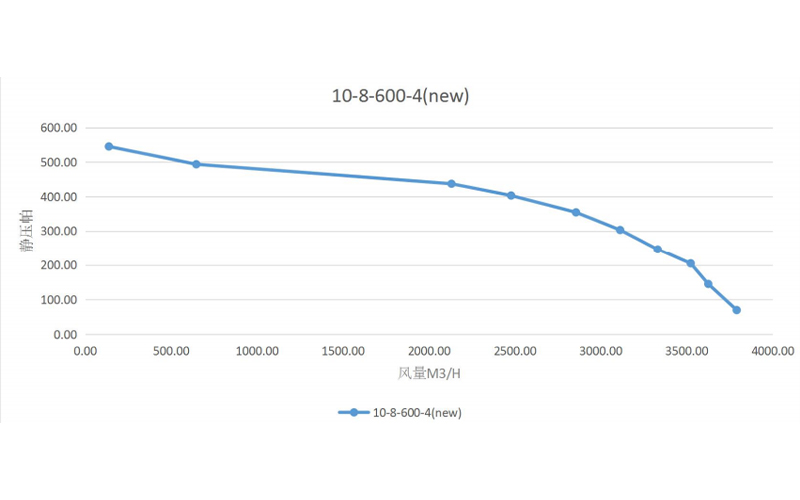

Curve:
Products provided by famous enterprises are deeply trusted by users.
