1. Equipped with a low-noise permanent magnet motor, it improves energy efficiency by 15%, delivers stable power output, and keeps operating noise below 60dB, making it suitable for noise-sensitive environments such as laboratories and precision workshops.
2. Compatible with ventilation duct systems, it solves ventilation challenges in long-distance air supply and high-resistance environments, ensuring stable airflow.
3. Constructed from high-strength aluminum alloy, its lightweight design reduces operating vibration while also offering corrosion and impact resistance, making it suitable for long-term use in industrial environments.
4. Utilizing high-strength, corrosion-resistant stainless steel, it supports the stable operation of the impeller and motor, preventing shaft rust or deformation.
Main Datas：
| Condition No. | Static Pressure of Air Chamber (Pa) | Air Flow (m³/h) | Total Pressure of Air Chamber (Pa) | Current (A) | Speed (r/min) | Power (W) |
| 1 | 515.63 | 126.7 | 531.61 | 1.3 | 1428 | 280 |
| 2 | 467.2 | 307.73 | 483.18 | 1.33 | 1425 | 284 |
| 3 | 411.35 | 448.84 | 427.33 | 1.33 | 1424 | 285 |
| 4 | 355.32 | 773.79 | 371.3 | 1.44 | 1408 | 310 |
| 5 | 296.36 | 1351.03 | 312.34 | 1.73 | 1366 | 373 |
| 6 | 255.25 | 1726.77 | 271.24 | 1.98 | 1310 | 434 |
| 7 | 199.31 | 1963.23 | 215.3 | 2.23 | 1255 | 438 |
| 8 | 168 | 2104.72 | 183.99 | 2.35 | 1255 | 514 |
| 9 | 94.67 | 2274.89 | 110.65 | 2.68 | 1106 | 582 |
| 10 | 22.8 | 2358.31 | 38.78 | 2.83 | 1020 | 623 |
Product size：

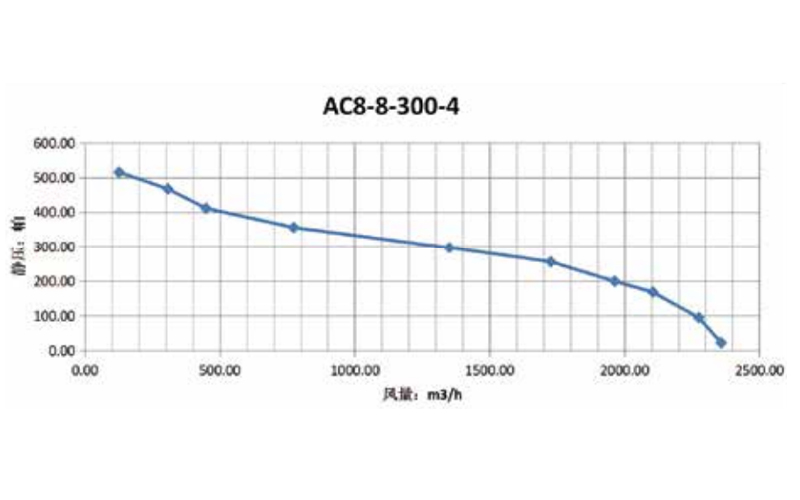

Curve:
Products provided by famous enterprises are deeply trusted by users.
