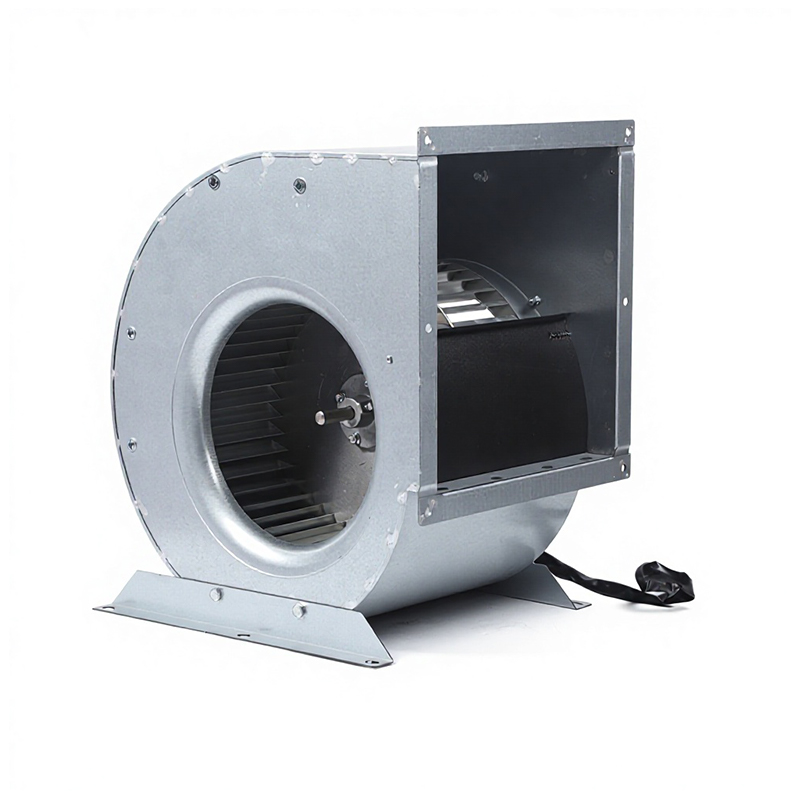

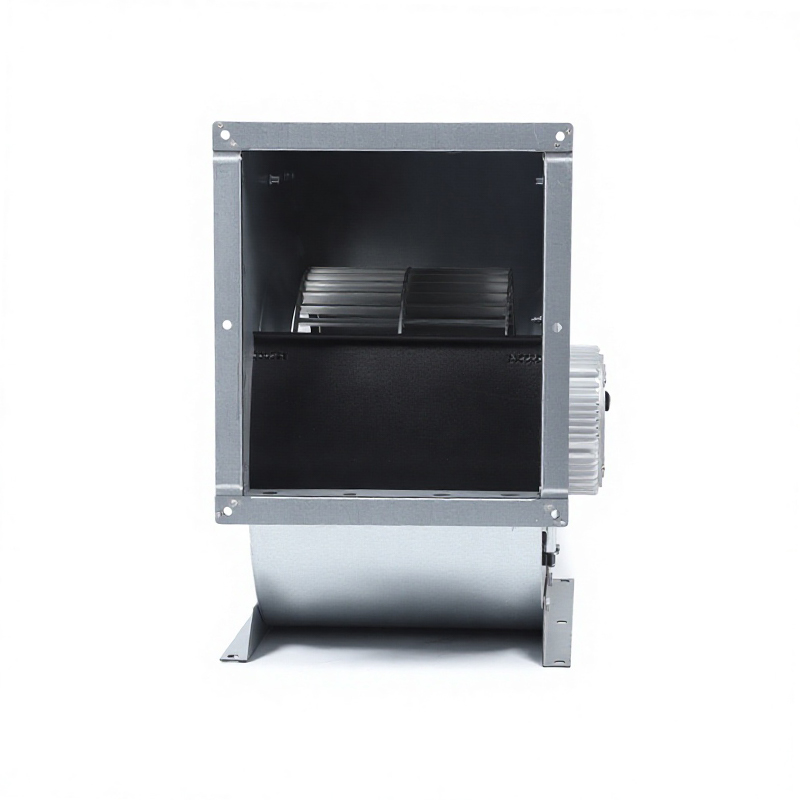

1. Utilizing a classic snail-shaped centrifugal mechanism, its compact design facilitates installation in confined workshops and warehouses. Its aerodynamic "volute + impeller" structure achieves efficient air compression and directional output.
2. Its industrial-grade ball bearings, carbon steel shaft, and galvanized steel housing withstand continuous 24-hour high-load operation, resulting in a service life of 5-8 years, reducing the cost of frequent replacements.
3. Its multi-voltage options and compact design adapt to the ventilation needs of diverse locations and spaces worldwide, truly achieving "one machine for multiple uses."
4. As a supporting ventilation component for industrial equipment such as injection molding machines, printing presses, drying equipment, and central air conditioning systems, it provides stable power for heat dissipation and exhaust removal, extending equipment life.
Main Datas：
| Condition No. | Static Pressure of Air Chamber (Pa) | Air Flow (m³/h) | Total Pressure of Air Chamber (Pa) | Current (A) | Speed (r/min) | Power (W) |
| 1 | 873.06 | 164.44 | 889 | 3.84 | 1430 | 825 |
| 2 | 757.06 | 766.19 | 773 | 3.92 | 1426 | 846 |
| 3 | 711.19 | 1075.48 | 727.12 | 4.12 | 1418 | 892 |
| 4 | 613.23 | 1842.39 | 629.15 | 4.77 | 1390 | 1033 |
| 5 | 570.38 | 2478.16 | 586.3 | 5.6 | 1355 | 1215 |
| 6 | 503.27 | 3643.04 | 519.19 | 7.29 | 1360 | 1577 |
| 7 | 446.6 | 3856.45 | 462.52 | 7.66 | 1215 | 1670 |
| 8 | 401.46 | 3996.65 | 417.38 | 7.96 | 1170 | 1722 |
| 9 | 362.01 | 4069.71 | 377.92 | 8.04 | 1145 | 1755 |
| 10 | 311.01 | 4150.65 | 326.93 | 8.36 | 1100 | 1806 |

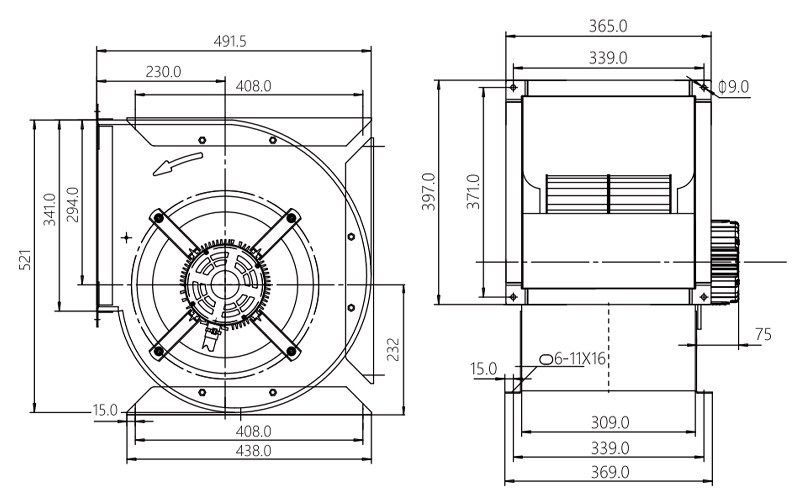

Product size：

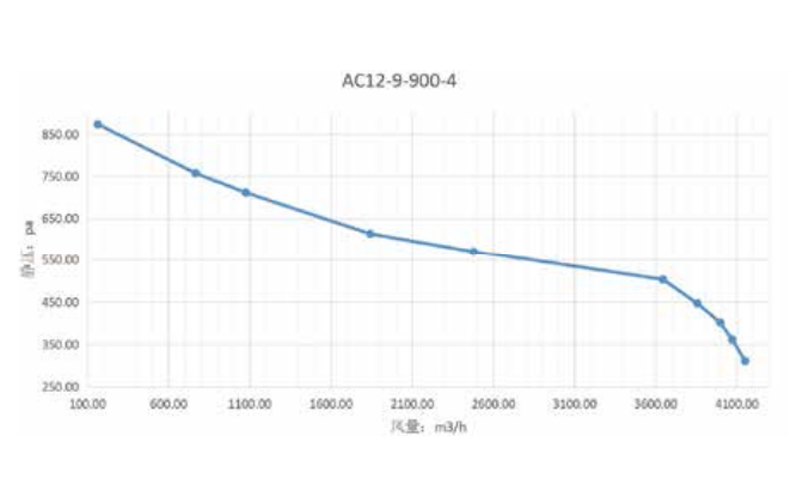

Curve:
Products provided by famous enterprises are deeply trusted by users.
