SYZ 7-5 low pressure blowing EC centrifugal fan

Home / Products / EC Centrifugal Fans / SYZ 7-5 low pressure blowing EC centrifugal fan

  • SYZ 7-5 low pressure blowing EC centrifugal fan
  • SYZ 7-5 low pressure blowing EC centrifugal fan

SYZ 7-5 low pressure blowing EC centrifugal fan

1. The air management system and the air management system are designed to support high efficiency air movement.
2. The front curved plate Japanese plastic material and selection, the front curved plate leaf, the good strength giving properties, the movement of the fixed place during the rotation, the air flow movement; the young selection plastic Its material quality and special characteristics are low, its capacity is low during movement, and its anti-corrosion performance is also very low.
3.Silver rod for selection, mechanical strength and hardness, proper mechanical support, guarantee mechanical stability.
4. Wind machine support 0 - 10V speed adjustment PWM speed control method, possible to set the air pressure control demand, finely adjust the wind speed.

Contact Us WhatsApp

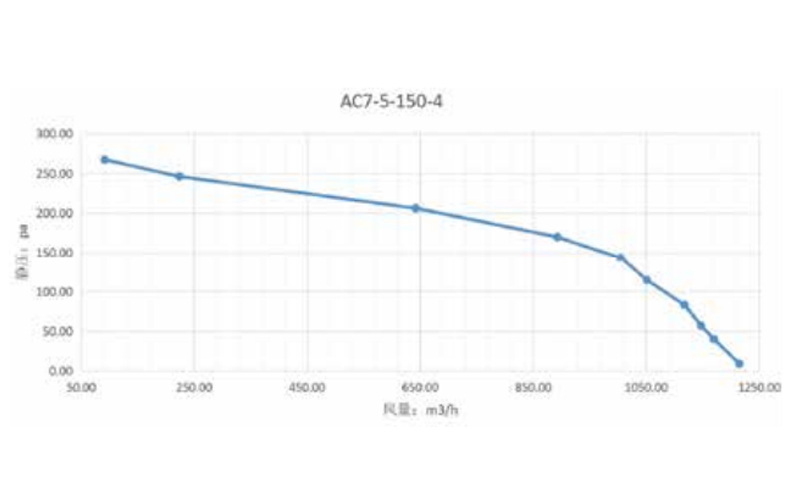

Main Datas：

Condition No. Static Pressure of Air Chamber (Pa) Air Flow (m³/h) Total Pressure of Air Chamber (Pa) Current (A) Speed (r/min) Power (W)
1 267.15 91.67 283.47 0.82 1456 160
2 245.91 223.93 262.23 0.83 1451 165
3 206.18 642.36 222.49 0.93 1405 197
4 169.92 892.72 186.22 1.05 1355 224
5 143.47 1004.47 159.76 1.12 1323 243
6 114.72 1050.92 131.01 1.15 1305 251
7 83.31 1117.54 99.59 1.19 1288 257
8 57.13 1146.87 73.41 1.21 1278 262
9 40.01 1169.53 56.28 1.23 1264 267
10 8.97 1214.38 25.24 1.26 1246 273

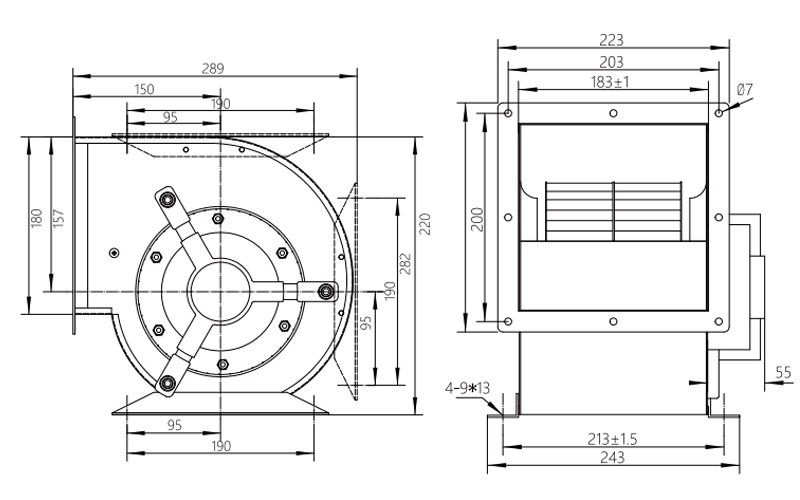

Product size：
