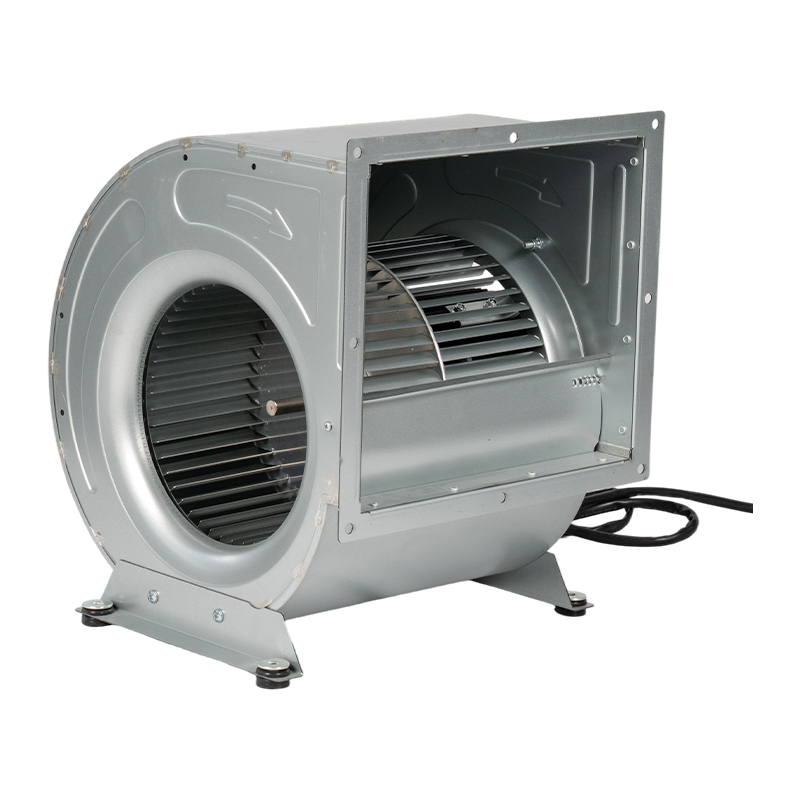

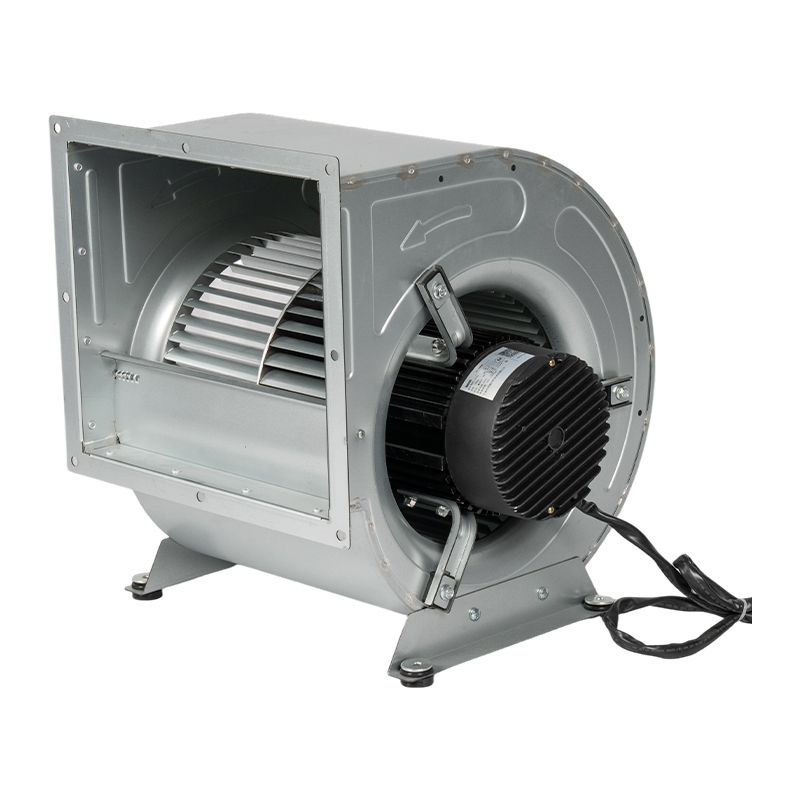

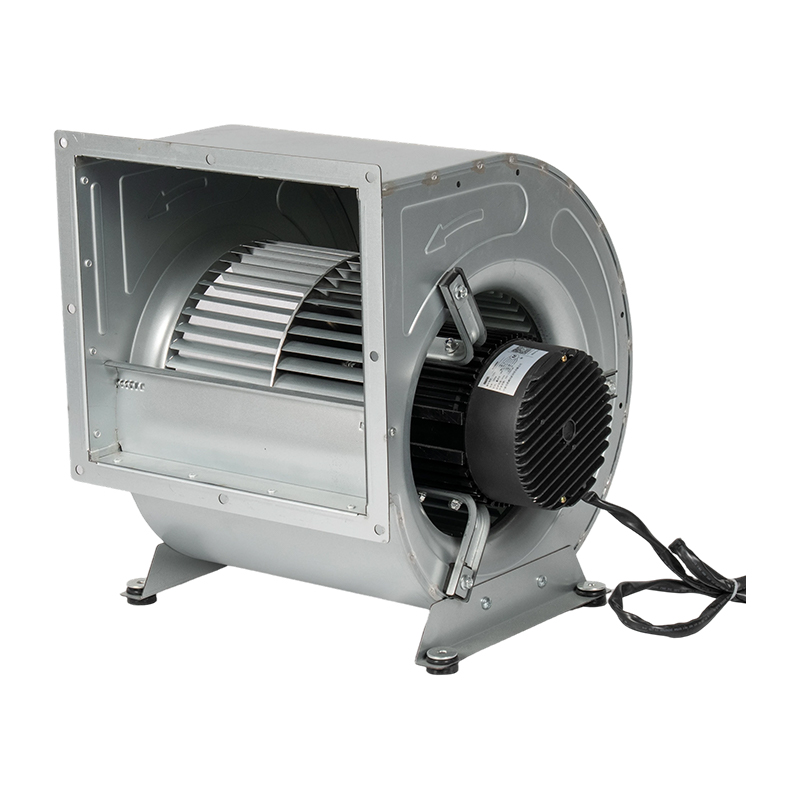

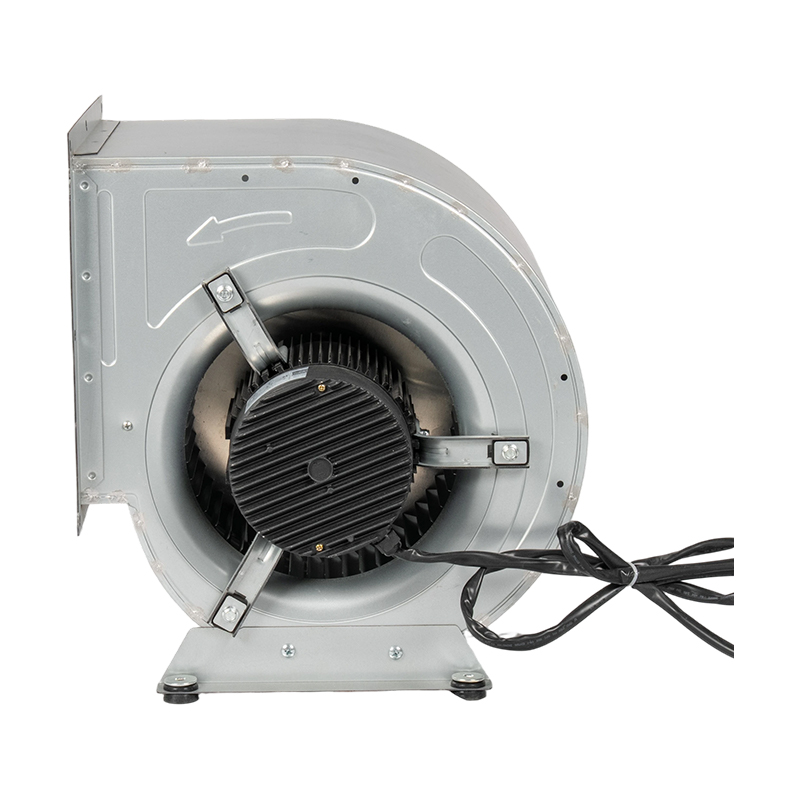

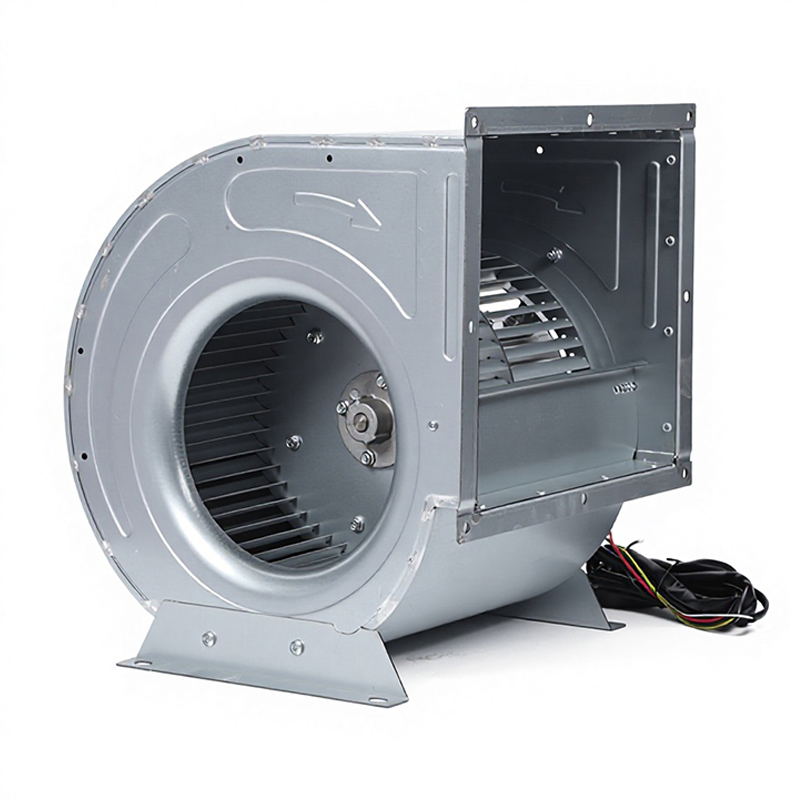

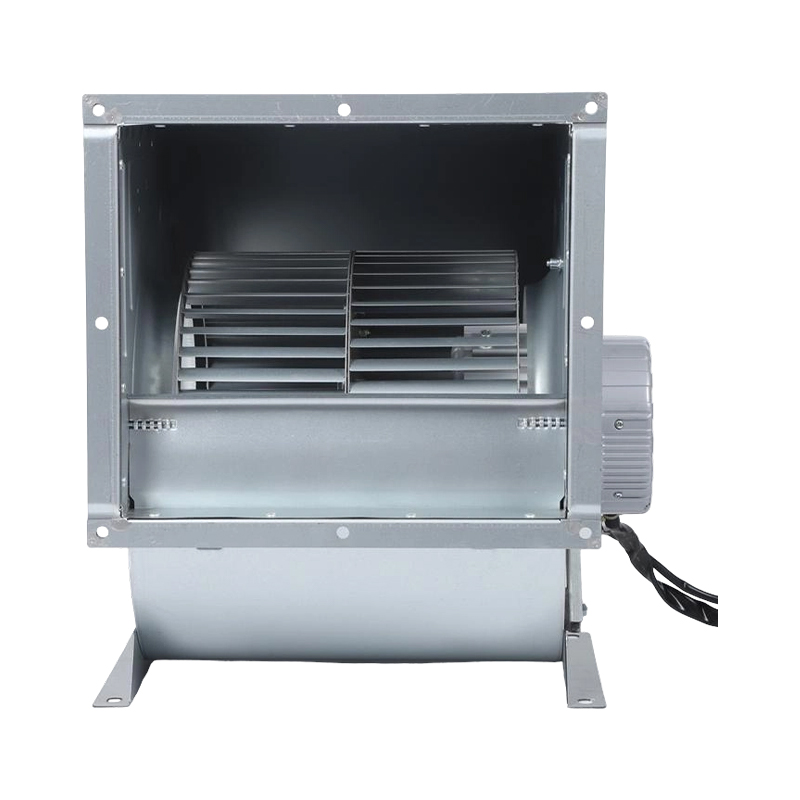

SYZ 10-10 large airflow radial EC centrifugal fans

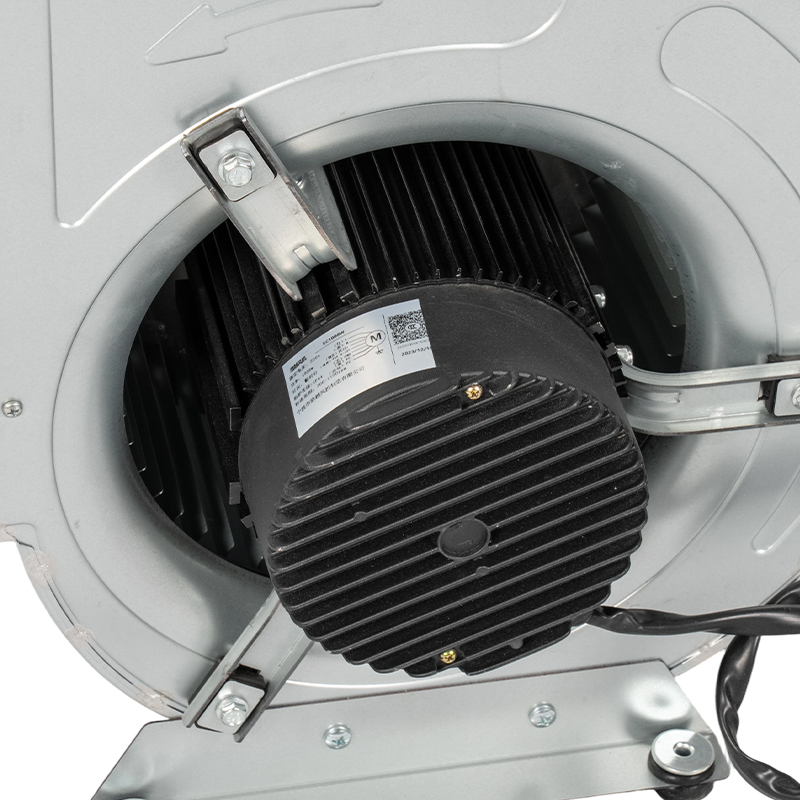

1.Equipped with high efficiency EC electric machine (BLDC), passed UL and CE certification, quality guaranteed.
2.Industrial high-strength, high-strength beads, easy to use, reduced friction and wear, extended service life.
3. Indoor temperature, humidity, etc. parameters, dynamic adjustment of air flow, guaranteed environmental power, effective energy consumption, high speed of heating during high peaks, rapid discharge of large amounts of oil smoke, low speed of low flow during non-high peak periods, reduced consumption and noise.
4.Variable air volume (VAV) air conditioner, pipe type air conditioner and its equipment, ideal auxiliary equipment for heating, evaporation equipment, same time use for kitchen exhaust fans, etc.

Contact Us WhatsApp

Main Datas：

Condition No. Static Pressure of Air Chamber (Pa) Air Flow (m³/h) Total Pressure of Air Chamber (Pa) Current (A) Speed (r/min) Power (W)
1 479.74 124.24 496.17 1.44 1200 195
2 399.08 565.46 415.51 1.51 1200 208
3 354.5 2373.7 370.9 3.66 1200 535
4 300.66 3651.81 317.04 5.32 1160 806
5 254.89 4006.4 271.26 5.72 1140 880
6 203.52 4254.51 219.89 5.9 1058 905
7 153.54 4427.18 169.89 5.69 980 866
8 0 0 0 0 0 0
9 0 0 0 0 0 0
10 0 0 0 0 0 0

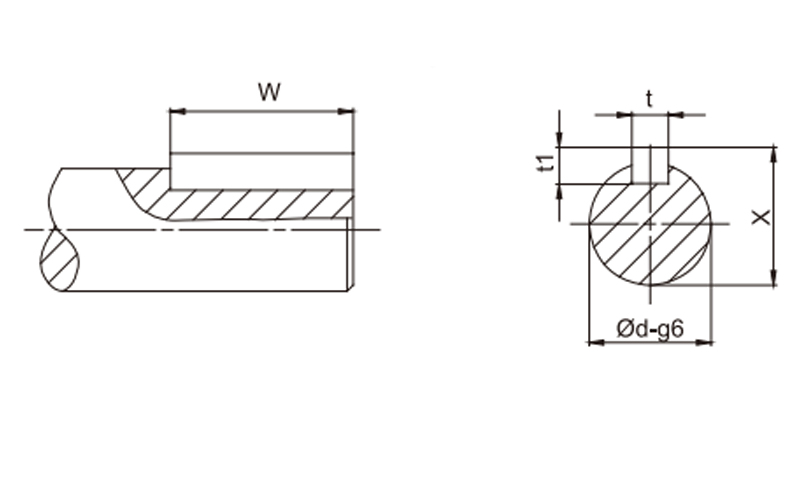

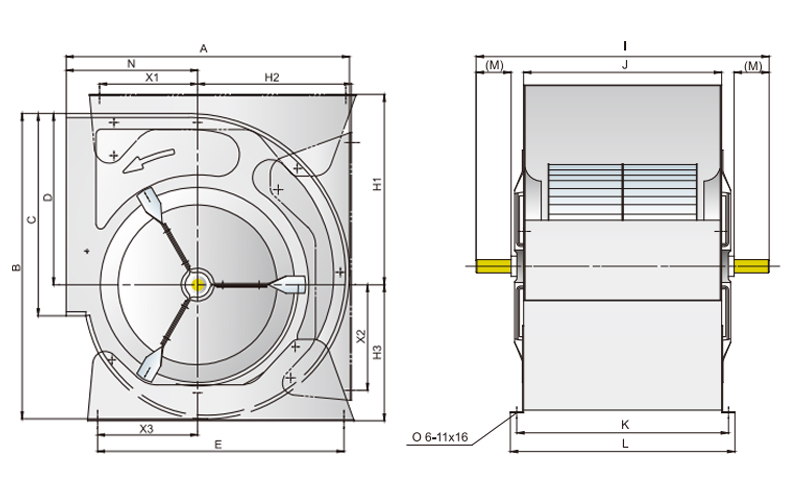

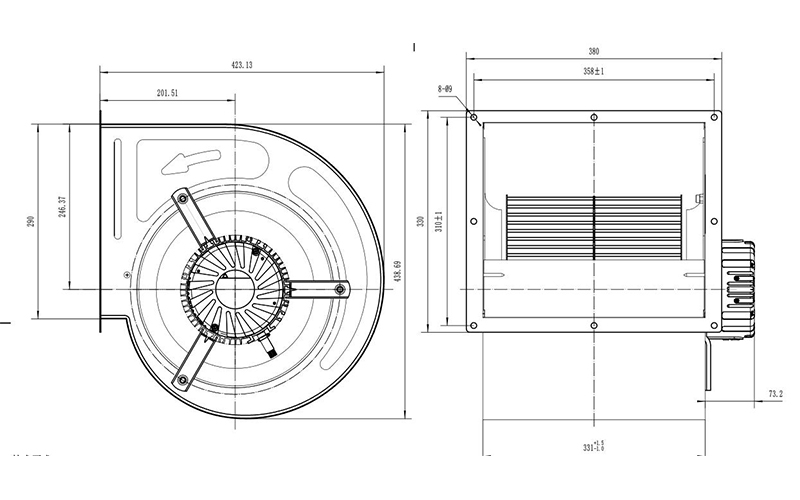

Product size：

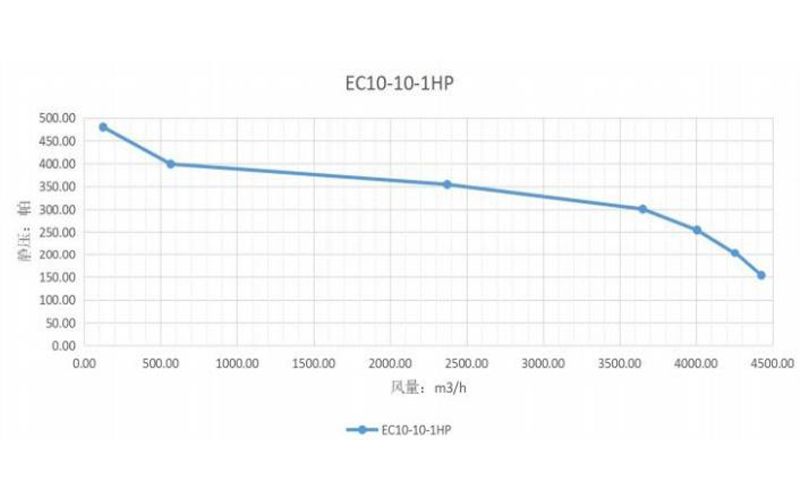

Curve：
